FerroTiC Brake Disc Cladding
Unique FerroTiC Titanium Carbide Hardmetal Powder for Brake Disc HVOF Spraying or
Laser / PTA Plasma Cladding or Cored Wire Filler of Wear, Corrosion, Cavitation Resist
11
1. AMTmetalTech Unique Top Quality World Lowest Price FerroTiC Titanium Carbide Hardmetal Powders for Brake Disc HVOF Spraying or Conical Mining Bit Laser / PTA Plasma Cladding or Cored Wire Filler Specifications
Type | TiC | Cr+ Ni | C+Mo+Nb | N+Mn+Co | Fe | Density | Hardness | Corrosion Resist | Temperature Resist | Powder Size | Application | Character |
T60 | 59-61 | 12-14 | 1.0-3.0 | 7.0-9.0 | Balance | ≈5.7 g/Cm3 | HRA88-89 | Better than 316L | up to 800℃ | 15-53um, 53-150um | HVOF, Cored Wire | Volume Price is 1/4 of WC-10Co-4Cr |
T33W | 32-34 | 15-17 | 1.0-3.0 | 4.0-6.0 | Balance | ≈6.8 g/Cm3 | HRC51-55 | Better than 17-4PH | up to 550℃ | 20-53um, 53-150um | Laser, PTA Cladding | Volume Price is 1/3 of NiBSi+W2C-WC |
T33E | 32-34 | 25-29 | 2.0-4.0 | 4.0-6.0 | Balance | ≈6.8 g/Cm3 | HRC40-50 | Better than 316L | up to 700℃ | 20-53um, 53-150um | Laser, PTA Cladding | Volume Price is 1/2 of Stellite |
T25C | 24-26 | 15-25 | 1.0-3.0 | 4.0-6.0 | Balance | ≈7.1 g/Cm3 | HRC36-46 | Better than 316L | up to 550℃ | 20-53um, 53-150um | Laser, PTA Cladding | Super Cavitation & very good Wear Resist |
2. AMTmetalTech Unique Top Quality World Lowest Price FerroTiC Titanium Carbide Hardmetal Powders for Brake Disc HVOF Spraying or Conical Mining Bit Laser / PTA Plasma Cladding or Cored Wire Filler Production
Pure TiC Titanium Carbide Production Processes: 1. TiO2 + 3C mixed & be put in Vacuum Furnace at about 2000℃ = TiC + 2CO, 2. TiC Crushed, 3. TiC Sieved & Gas Classified.
AMTmetalTech unique FerroTiC Powder is the pure TiC clad with Stainless Steel to avoid the headache of pure TiC oxidizing and not easy to be wet bonded with steel during weld overlaying or thermal spraying.
The Tungsten Carbide volume rate in WC-10Co-4Cr is about 77%. The Titanium Carbide volume rate in T60=60%TiC+40%Stainless Steel is about 70%. The wear resistance of T60 is very good and close to WC-10Co-4Cr. The volume price of T60 is very competitive only 1/4 one quarter of the WC-10Co-4Cr for HVOF, HVAF or Plasma Spraying Brake Discs, Valves, Pistons, Drill Rods or Cored Wire Filler etc.

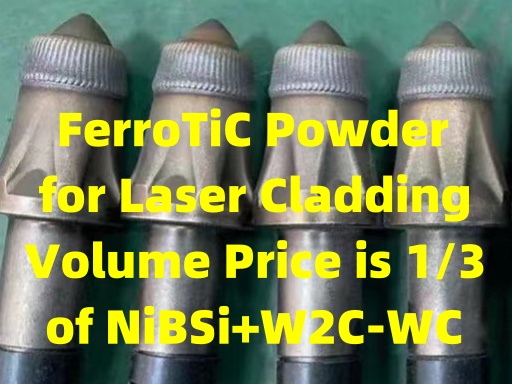

The Tungsten Carbide volume rate in 60%W2C-WC+40%NiBSi is about 43%. The Titanium Carbide volume rate in T33W=33%TiC+67%Stainless Steel is about 44%. The wear resistance of T33W is very good and close to 60%W2C-WC+40%NiBSi. The volume price of T33W is very competitive only 1/3 one third of the 60%W2C-WC+40%NiBSi for Laser or PTA Plasma cladding Brake Discs, Conical Mining Drill Bits etc.
T33E=33%TiC+67%Elevated Temperature Erosion Resist Austenite Stainless Steel is very good for Gas Valve Laser or PTA Plasma Cladding in Car Industry.
T25C=25%TiC+75% Duplex Stainless Steel can be very good Cavitation resist in addition to good corrosion resist and very good abrasion resist no cracking tendancy without preheating for Laser or PTA Plasma Cladding Hydro Turbine Runners, Propeller Blades, Impeller Runners, Pumps etc. The Titanium Carbide volume rate in T25C is about 35%.
Vacuum Reduction for Pure TiC T33E Gas Valve Cladding T25C Powder for Cavitation Resist
3. AMTmetalTech Unique Top Quality World Lowest Price FerroTiC Titanium Carbide Hardmetal Powders for Brake Disc HVOF Spraying or Conical Mining Bit Laser / PTA Plasma Cladding or Cored Wire Filler Advantages
FerroTiC Advantages | FerroTiC T60=60%TiC+SS | Pure TiC |
Density | about 6.1 | 4.93 |
TiC Grain Size | 1-2um | 20-53um, 53-150um |
Coating Homogeneity | Homogenious for T60 is dissolved to be fine TiC | Less Homogenious for Thick TiC easy to float |
Coating Brittleness | Less Brittle for fine 60%TiC already bonded with SS | More Brittle for pure thick TiC |
Bonding after Cladding | Better bonding for fine TiC already bonded with SS during vacuum sintering before cladding | Pure thick TiC is easy to be oxidized and less easy to be bonded with SS during cladding |
Cracking Tendency of Coating | Less Cracking Tendency | More Cracking Tendency |
TiC content rate allowed in coating to prevent cracking | Higher | Less |
4. AMTmetalTech Unique Top Quality World Lowest Price FerroTiC Titanium Carbide Steel Cemented Hardmetal Wear Parts
The wear resistance of AMTmetalTech Unique Titanium Carbide Hardmetal is as Ferro-Titanit & close to Tungsten Carbide Hardmetal. The volume price is much lower than Tungsten carbide Hardmetal for the Low density.
Type | TiC, wt% | Density, g/Cm3, min. | Typical Hardness, HRA | Bend Strength, MPa, min. | Porosity | Impact, J/Cm3, min. | Description | Properties | Applications |
MT-316LTiC50 | 50 | 6.0 | 86 | 1800 | 316L Titanium Carbide Hardmetal with 316L matrix | 1、High hardness and good corrosion resist. | Mainly for Wear Parts and Crusher inserts.
| ||
MT-316LTiC60 | 60 | 5.7 | 88 | 1500 | |||||
MT17-4TiC50 | 50 | 6.0 | HRC50 Sintered, HRC68 Quenched | 2300 | 17-4 Titanium Carbide Hardmetal with 17-4 matrix | ||||
MT-HMTiC50 | 50 | 6.0 | 85.0 | 2800 | A04B00 | 13 | Titanium Carbide HardmetaL with High Manganese Steel matrix similar as Ferro-Titanit. | 1、High hardness and Good toughness. | Mainly for Mining Inserts and Bits.
|
MT-HMTiC54 | 54 | 5.9 | 86.0 | 2600 | A04B00 | 12 | |||
MT-HMTiC56 | 56 | 5.8 | 87.0 | 2400 | A04B00 | 12 | |||
MT-HMTiC59 | 59 | 5.7 | 88.0 | 2200 | A04B00 | 10 | |||
MT-HMTiC63 | 63 | 5.6 | 88.5 | 1800 | A04B00 | 10 | |||
MT-HMTiC67 | 67 | 5.5 | 89.0 | 1800 | A04B02 | 10 | |||
MT-HMTiC72 | 72 | 5.4 | 90.0 | 1800 | A04B02 | 9 | |||
MT-STTiC35 | 35 | 6.5 | HRC57 Sintered, Annealed, Quenched | 2200 | A04B00 | 5.9 | Titanium Carbide HardmetaL with tool steel matrix similar as Ferro-Titanit. | 1、High hardness and Good toughness. | Mainly for Cutters and Moulds.
|
